Micatu Overhead Sensors
The Overhead Optical Sensors capture everything you need: current and voltage, temperature, current harmonics and voltage harmonics, more accurately and precisely than any traditional solution. That’s in addition to being completely modular, hot-stick deployable, and safely isolated from the current.
Platformed with the m410B Optical Signal Processor for real-time delivery, the Gridview Sensors deliver a wider range of metrics to power your every analytics need, safely and easily.
Safe
The Gridview Sensors present no violent failure or electrocution risks, because the optical technology works outside the line current and is electrically isolated.
Accurate
Gridview sensors maintain +/- 0.5% accuracy across the entire measurement range, regardless of applied voltage or current, and in all typical environmental conditions: from -30° C (-22° F) to 70°C (158° F).
Advanced
The injection-molded HCEP housing is lightweight, durable, and keeps the entire sensor free of conductive materials. The all-optical design keeps the sensor isolated from the current, ensuring high reliability and long life.
Easy Install
A typical three-phase system can be completed in about 3 hours. Each Gridview Sensor is attached to the conductor cable on a swing link mounting system via shotgun stick. Fiber optic cables connect the sensors to the m410B Optical Signal Processor.
Our Products
The Gridview Medium Voltage & Current Sensor System utilizes a 100% “all-optical” measurement platform for unparalleled accuracy and precision of both voltage and current across multiple voltage classes. Installation time for a typical three-phase system is less than three hours, resulting in significant deployment savings. All signals from the sensor are connected via optical fiber connections to a “plug & play” modular optical sensor platform m410 Modular Optical Sensor Platform that is fully ruggedized and scalable.
.png)
Product Specs

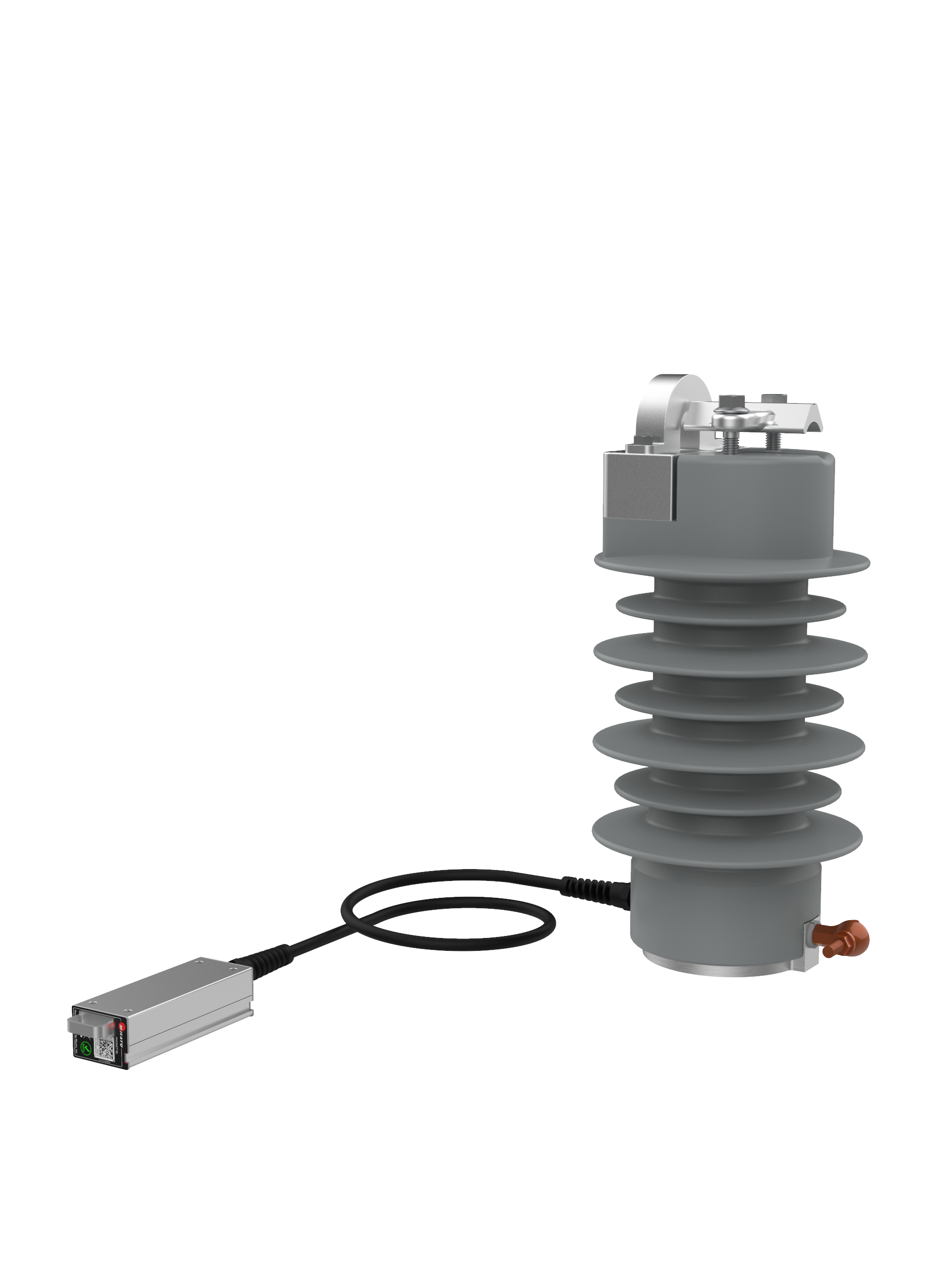

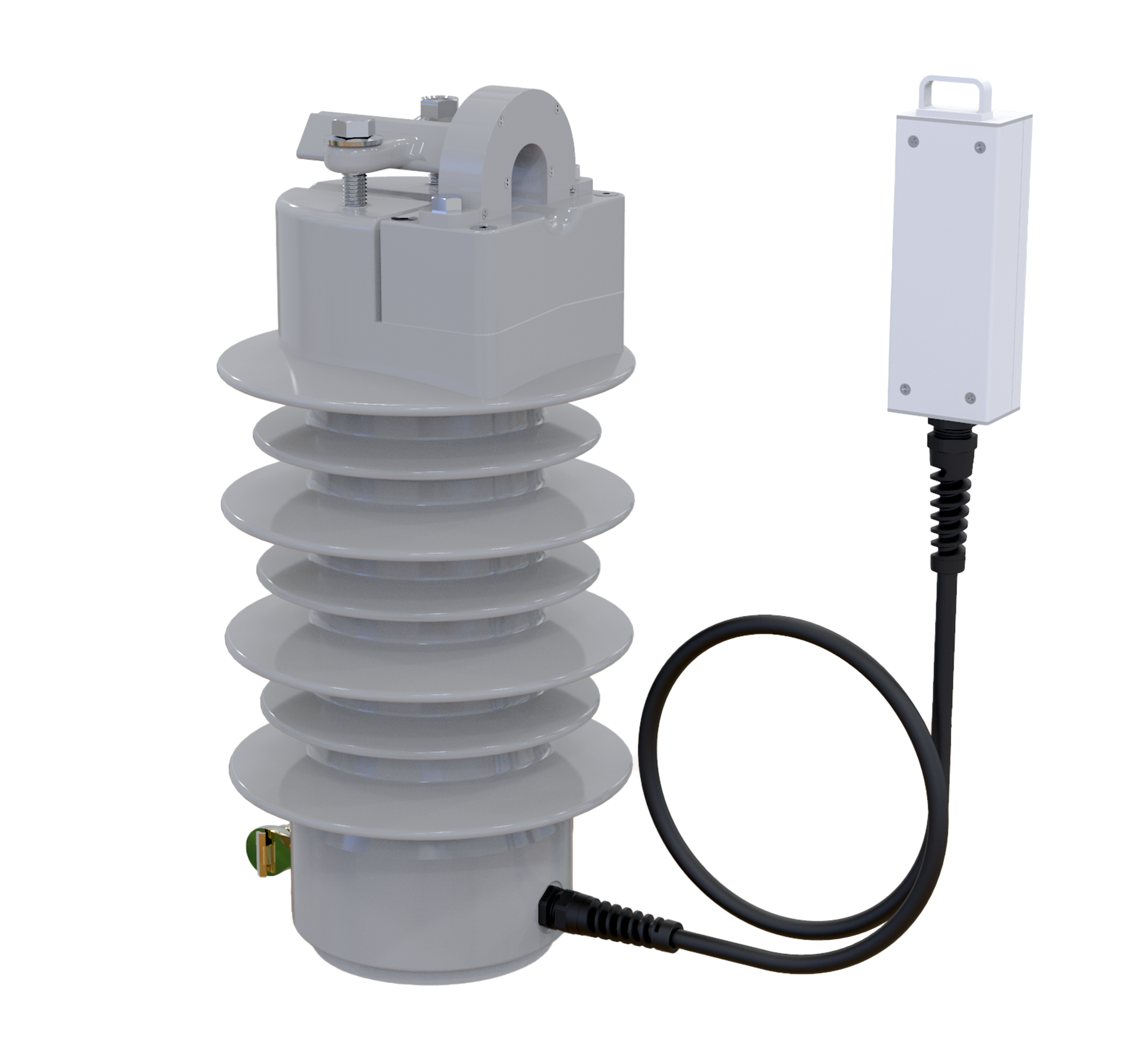

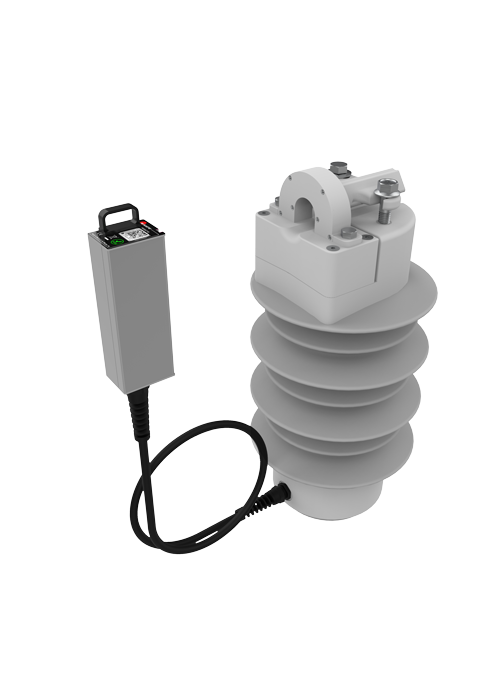

Gridview RP225 Sensor
Insulator body rating 25kV, 55ft/(17m) Cable Length
Wire clamp adjustable diameter 0.162” to 1.125”
Transients: 10dB (10x steady state condition) minimum
Harmonics: Measurements to 250th Voltage Harmonic & 11th Current Harmonic
Cantilever Rating: 3000 lbs.
Environmental
Operational: -22ºF to 158ºF (-30ºC to 70ºC)
Relative Humidity: 5% to 95%
Certifications
Acid Atmosphere: MIL-STD-810G, Method 518.1
Salt Fog: MIL-STD-810G, Method 509.5
Temperature Shock: MIL-STD810G, Method 503.5
Vibration: MIL-STD-810G, Method 514.6, 514.6C-4
BIL: 250kV Full-Wave Lightning Impulse
Partial Discharge Per IEEE Std. 4
.png)
Product Specs

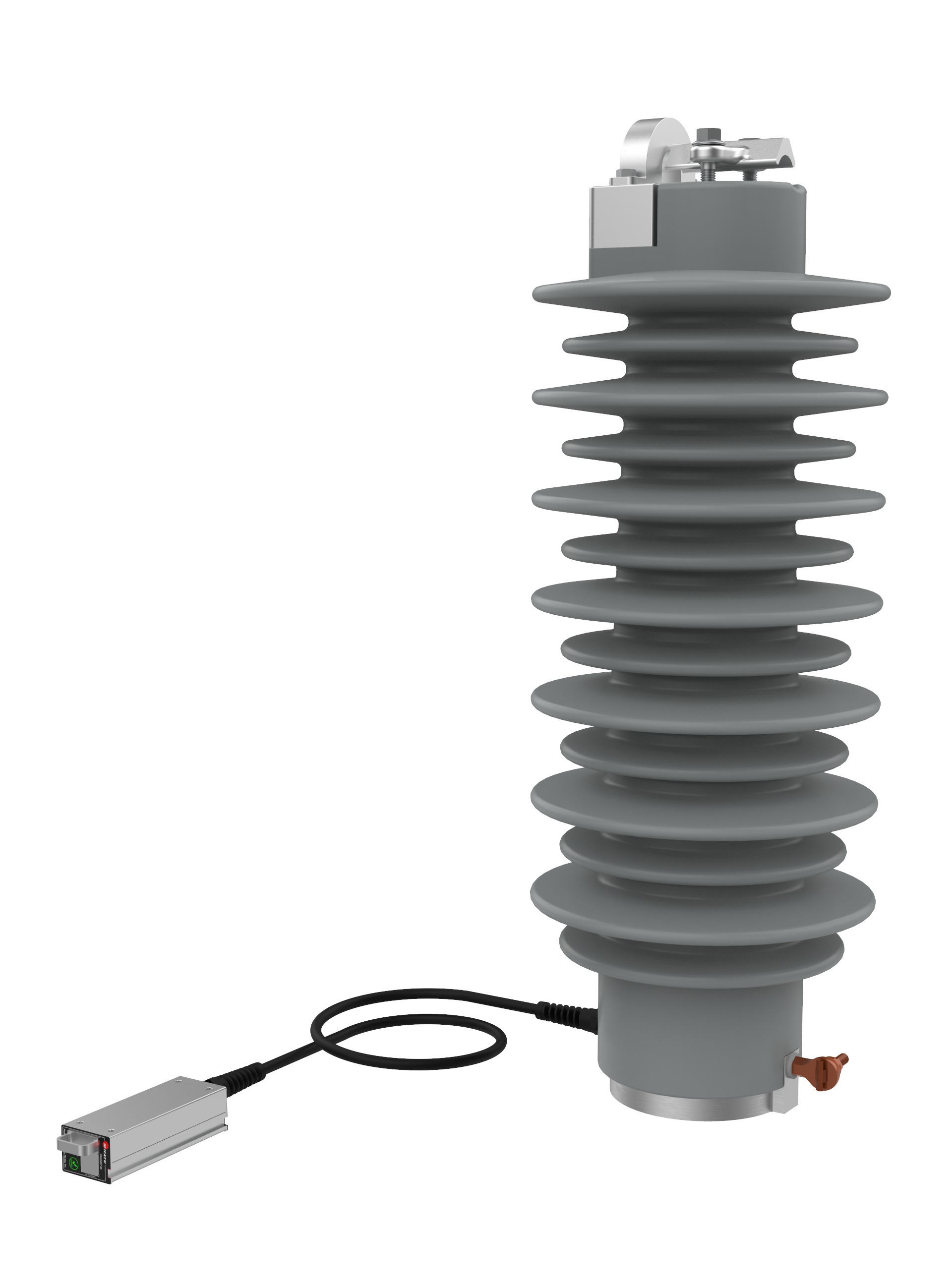

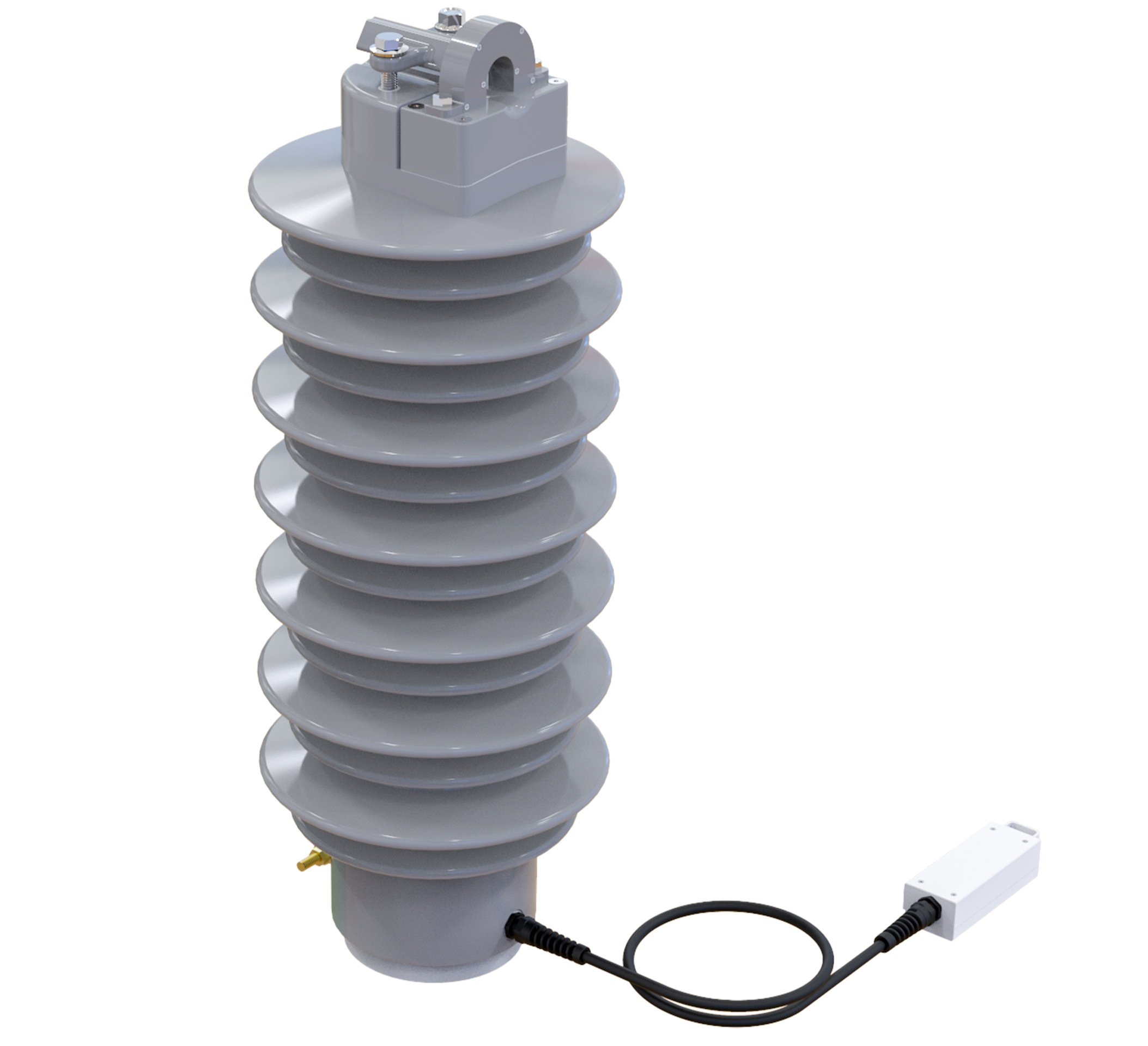

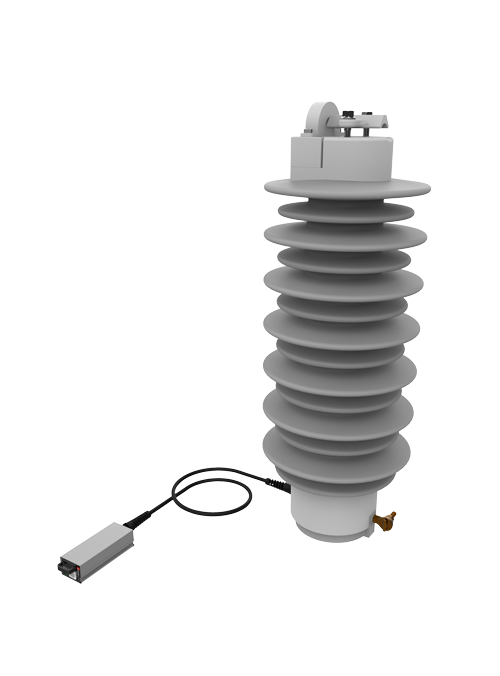

Gridview RP269 Sensor
Insulator body rating 72kV, 55ft/(17m) Cable Length
Conductor swing link clamp diameter from 0.19” to 1.16”
Transients: 10dB (10x steady state condition) minimum
Harmonics: Measurements to 250th Voltage Harmonic & 11th Current Harmonic
Environmental
Operational: -22ºF to 158ºF (-30ºC to 70ºC)
Relative Humidity: 5% to 95%
Certifications
Acid Atmosphere: MIL-STD-810G, Method 518.1
Salt Fog: MIL-STD-810G, Method 509.5
Temperature Shock: MIL-STD-810G, Method 503.5
Vibration: MIL-STD-810G, Method 514.6, 514.6C-4
BIL: 250kV Full-Wave Lightning Impulse
Partial Discharge Per IEEE Std. 4

RG235
- Voltage: 4kV to 35kV
- Amperes: 10A to 1000A
- Weight: 9.52 kg (21 lbs.)
Product Specs

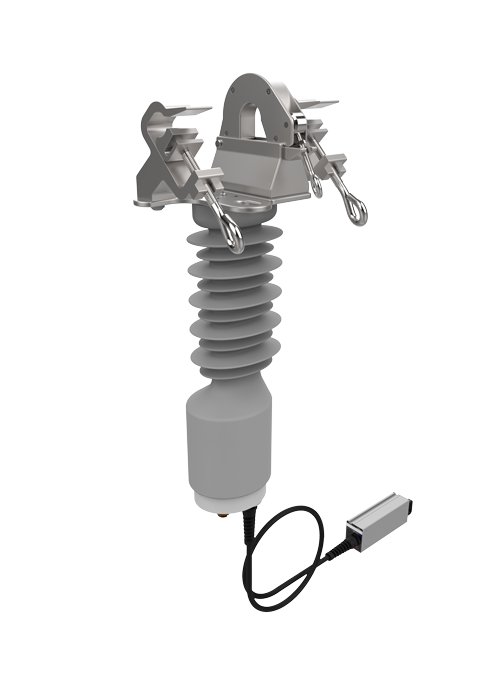

Gridview RG235 Sensor
Insulator body rating 35kV, 55ft/(17m) Cable Length
Wire clamp adjustable diameter 0.162” to 1.125”
Transients: 10dB (10x steady state condition) minimum
Harmonics: Measurements to 250th Voltage Harmonic & 11th Current Harmonic
Environmental
Operational: -22ºF to 158ºF (-30ºC to 70ºC)
Relative Humidity: 5% to 95%
Certifications
Acid Atmosphere: MIL-STD-810G, Method 518.1
Salt Fog: MIL-STD-810G, Method 509.5
Temperature Shock: MIL-STD-810G, Method 503.5
Vibration: MIL-STD-810G, Method 514.6, 514.6C-4
BIL: 200kV Full-Wave Lightning Impulse
Partial Discharge Per IEEE Std. 4
Visibility that Saves Time and Money

"Micatu’s technology allowed us to gain important distribution feeder data at a pace we’ve never been able to achieve. This deployment not only improves our visibility of the grid but saved us valuable time and money."
Electrical Utility Manager of Projects and Programs
Additional Products

Underground Sensors
Micatu Underground Sensors install quickly and easily into any standard load-break elbow, serving as a highly accurate and low-cost solution for monitoring distributed grids.

Enclosure Mounted Sensors
Enclosure mounted sensing with optic technology, non-conductive housing, and a contained grounding e-field, the impossible becomes a reality with measurements as accurate as +/- 0.5%.
Contact Us
Looking to transform the way you collect data from the grid? Our experts will help you upgrade your measurement technology for the grid of the future.
